Tire Rotation vs. Wheel Balancing vs. Wheel Alignment: What’s the Difference?
Tire rotation, wheel balancing, and wheel alignment each correct a different source of tire and chassis wear. Tire rotation moves each wheel to a new position so tread wears evenly across all four tires. Wheel balancing adds small counterweights to the wheel so the tire and wheel assembly spins smoothly without highway-speed vibration. Wheel alignment adjusts suspension angles so the wheels point straight and match the manufacturer’s specifications.
Because these three services are often performed during the same visit, it’s easy to confuse them and end up addressing the wrong problem. Uneven tread wear usually calls for a rotation. A steering wheel that vibrates at highway speeds points to an out-of-balance tire and wheel assembly. A vehicle that drifts on a level road, or a steering wheel that sits off-center while you drive straight, points to alignment.
Routine tire maintenance protects steering response and tire life on every type of vehicle, from commuter sedans to crossovers, trucks, and SUVs. Misaligned wheels also create uneven tire wear and increase rolling resistance and fuel consumption.
Rotation, Balancing, and Alignment at a Glance
Each service solves a different problem. According to AAA, balancing adds weights to correct uneven weight distribution in the tire and wheel, while an alignment is a series of suspension adjustments. Rotation, as Bridgestone explains, counteracts the uneven wear characteristics of each wheel position.
| Service | What It Corrects | Common Warning Sign |
|---|---|---|
| Tire rotation | Uneven tread wear between tire positions | Front and rear tires wearing at different rates |
| Wheel balancing | Uneven weight distribution around the tire and wheel assembly | Vibration in the steering wheel (front) or seat (rear) at highway speeds |
| Wheel alignment | Camber, toe, and caster angles outside manufacturer specifications | Pulling to one side, an off-center steering wheel, or uneven tire wear |
What Does a Wheel Alignment Measure?
A wheel alignment measures three main angles: camber, toe, and caster, and adjusts them to your vehicle manufacturer’s specifications. Most modern vehicles need a four-wheel alignment, which addresses the angles at both axles.
| Angle | What It Measures | Viewed From |
|---|---|---|
| Camber | The inward or outward tilt of the tire | The front |
| Toe | Whether the tires point inward or outward relative to each other | Above |
| Caster | The forward or backward tilt of the steering axis | The side |
What Causes Wheel Alignment to Shift?
Wheel alignment shifts when sudden impacts or gradual component wear push suspension parts out of their factory settings. Continental recommends an alignment check after hitting a significant pothole or curb, and frequent driving on rough roads can throw alignment off faster.
Wear matters too. Over time, cumulative wear in ball joints and tie rod ends can change toe angle, and worn ball joints, tie rod ends, or control arm bushings can keep a vehicle from holding its alignment. Left uncorrected, misalignment creates uneven tire wear that can shorten the life of your tires.
What Are the Signs Your Vehicle Needs an Alignment?
According to Continental, the primary signs are a vehicle that pulls to one side, uneven or rapid tire wear, an off-center steering wheel when driving straight, and steering wheel vibration. Firestone also lists a steering wheel that feels loose or unresponsive. Because steering wheel vibration is also a classic sign of an out-of-balance wheel, a technician will typically check both.
Your tread also offers clear evidence of alignment and inflation problems, often before steering pull becomes obvious. Michelin links these wear patterns to their typical causes:
| Wear Pattern | Likely Cause | Typical Fix |
|---|---|---|
| Wear on one edge only (inner or outer) | Wheel alignment problem | Wheel alignment |
| Feathering (sharp edge on one side, rounded on the other) | Toe alignment issue | Wheel alignment |
| Wear on both outer edges | Chronic under-inflation | Correct tire pressure |
| Wear concentrated in the center of the tread | Chronic over-inflation | Correct tire pressure |
| Cupping or scalloping (wavy, uneven surface) | Wheel imbalance or worn shock absorbers | Wheel balancing or suspension inspection |

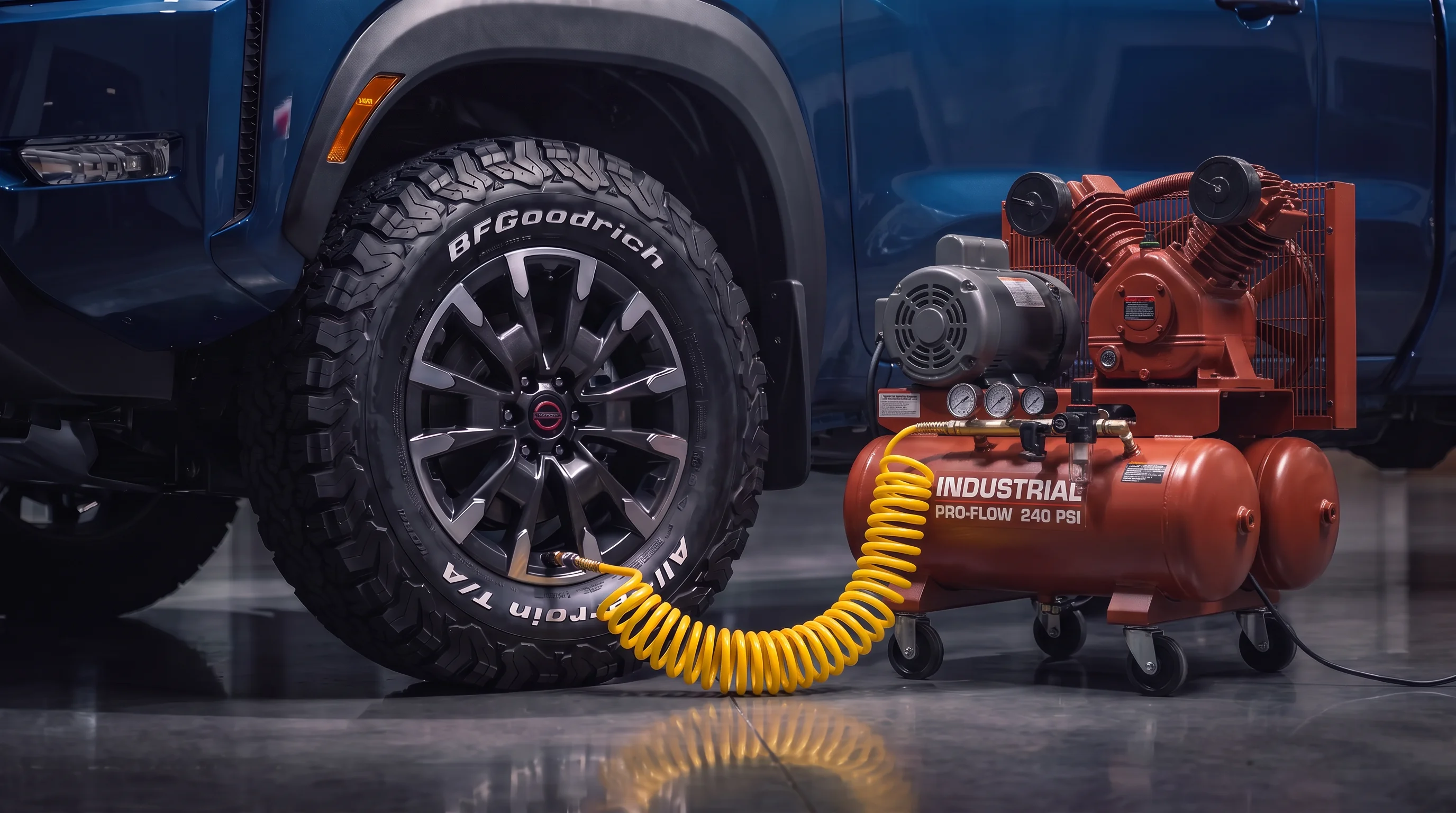

How Does Tire Pressure Affect Tire Wear?
Tire pressure doesn’t change alignment angles, but incorrect pressure creates wear patterns that can look like an alignment problem, so it’s worth ruling out before diagnosing uneven wear.
Most passenger vehicles call for roughly 30 to 35 PSI, but the correct figure for your vehicle is on the tire information placard on the driver-side door jamb or in your owner’s manual. Michelin advises following your vehicle manufacturer’s recommended pressure rather than the number printed on the tire sidewall, and notes that tires lose about 1 PSI for every 10°F drop in temperature.
Under-inflated tires wear faster along both shoulders, while over-inflated tires wear down the center of the tread. NHTSA notes that proper tire pressure affects safety, tire durability, and fuel consumption. Learn more about how tire pressure affects fuel consumption.
Use this quick reference, based on NHTSA tire safety guidance:
| What to Know | Guidance |
|---|---|
| Where to find your PSI | The tire information placard on the driver-side door jamb, or your owner’s manual (not the tire sidewall) |
| When to check | When tires are cold, meaning the vehicle hasn’t been driven for at least three hours |
| How often | At least once a month, including the spare, and before long trips |
| Temperature effect | About 1 PSI lost for every 10°F drop in temperature |
The information on this page is provided for general informational purposes only and reflects manufacturer specifications believed accurate at the time of publication. Specifications, capacities, part numbers, and service recommendations are subject to change and may vary by model year, trim, and configuration. Always confirm the correct tire pressure, rotation pattern, and alignment specifications against your vehicle’s owner’s manual and tire information placard before servicing. Consult a certified technician for service specific to your vehicle.
Tire Rotation Patterns: Which Tire Goes Where?
The right rotation pattern depends on your vehicle’s drivetrain and the type of tires it uses. On front-wheel-drive vehicles, the front axle tires handle braking, steering, and driving forces, so they wear much faster than the rears. On all-wheel-drive vehicles, evenly worn tires lower stress on the drivetrain, which makes consistent rotation especially important.
The patterns below reflect the recommendations Bridgestone publishes from the Tire and Rim Association, the tire industry’s standardizing body, along with the directional and side-to-side patterns outlined by Kumho Tire. Your owner’s manual specifies the correct pattern for your vehicle.
| Vehicle or Tire Type | Rotation Pattern | How It Works |
|---|---|---|
| Front-wheel drive | Forward cross | Front tires move straight back; rear tires cross to the opposite side at the front |
| Rear-wheel drive | Rearward cross | Rear tires move straight forward; front tires cross to the opposite side at the rear |
| All-wheel drive and four-wheel drive | X-pattern (rearward cross also used) | Every tire moves diagonally, switching both axle and side |
| Directional tires (same size front and rear) | Front-to-rear | Tires stay on the same side and swap axles |
| Different front and rear sizes (non-directional) | Side-to-side | Tires swap sides on the same axle |
The information on this page is provided for general informational purposes only and reflects manufacturer specifications believed accurate at the time of publication. Specifications, capacities, part numbers, and service recommendations are subject to change and may vary by model year, trim, and configuration. Always confirm the correct tire pressure, rotation pattern, and alignment specifications against your vehicle’s owner’s manual and tire information placard before servicing. Consult a certified technician for service specific to your vehicle.
How Often Should You Rotate Your Tires, and Can You Do It Yourself?
NHTSA advises checking your owner’s manual for how often your tires should be rotated and which pattern to use. When the vehicle manufacturer doesn’t provide a schedule, Bridgestone recommends rotating every 5,000 miles, and Michelin’s standard recommendation is every 5,000 to 7,000 miles, or every other oil change. Manufacturer schedules vary, so check yours, such as our Toyota service schedule guide.
Rotation can be done at home with a floor jack, jack stands, and a torque wrench, tightening the lug nuts to the specification in your owner’s manual or from your wheel manufacturer, as Dodge Garage outlines. Wheel alignment is different: it requires an alignment machine that verifies all settings meet the vehicle manufacturer’s specifications.
The information on this page is provided for general informational purposes only and reflects manufacturer specifications believed accurate at the time of publication. Specifications, capacities, part numbers, and service recommendations are subject to change and may vary by model year, trim, and configuration. Always confirm the correct tire pressure, rotation pattern, and alignment specifications against your vehicle’s owner’s manual and tire information placard before servicing. Consult a certified technician for service specific to your vehicle.
When Should Tires Be Balanced?
NHTSA advises always having new tires balanced at installation. Balance can also change after the tires are in service: according to AAA, hitting curbs or driving on rough roads can cause the weights on your wheels to fall off. Steering wheel vibration usually indicates a front-wheel imbalance, while vibration felt through the seat or floorboard often points to the rear wheels.
The information on this page is provided for general informational purposes only and reflects manufacturer specifications believed accurate at the time of publication. Specifications, capacities, part numbers, and service recommendations are subject to change and may vary by model year, trim, and configuration. Always confirm the correct tire pressure, rotation pattern, and alignment specifications against your vehicle’s owner’s manual and tire information placard before servicing. Consult a certified technician for service specific to your vehicle.
Common Questions About Tire Maintenance and Alignment
Will incorrect tire pressure cause alignment problems?
No. Tire pressure doesn’t change suspension alignment angles, but it can create wear patterns that look like alignment damage. Under-inflation wears both shoulders, while over-inflation wears the center of the tread. Setting pressure to the placard figure helps rule out inflation as the cause of uneven wear.
What happens if you drive out of alignment for a long time?
Misaligned wheels create uneven tire wear and increase rolling resistance, which can shorten tire life and raise fuel consumption. Improper toe adjustment can also cause steering instability when accelerating or braking.
Does a wheel alignment include tire balancing?
No. They’re separate services. An alignment is a series of suspension adjustments, while balancing adds weights to correct uneven weight distribution in the tire and wheel. Having both done during the same visit addresses steering and vibration concerns together.
Are tire rotation patterns the same for front-wheel-drive and all-wheel-drive vehicles?
No. Front-wheel-drive vehicles typically use a forward cross, while all-wheel-drive vehicles commonly use an X-pattern; a rearward cross is also an accepted all-wheel-drive pattern. Your owner’s manual specifies the correct pattern and interval for your vehicle.
How often should wheel alignment be checked?
Continental recommends having your alignment checked at least once a year, after hitting a significant pothole or curb, when installing new tires, and whenever you notice pulling or uneven tire wear. Check your owner’s manual for any manufacturer-specific guidance.
The information on this page is provided for general informational purposes only and reflects manufacturer specifications believed accurate at the time of publication. Specifications, capacities, part numbers, and service recommendations are subject to change and may vary by model year, trim, and configuration. Always confirm the correct tire pressure, rotation pattern, and alignment specifications against your vehicle’s owner’s manual and tire information placard before servicing. Consult a certified technician for service specific to your vehicle.
Professional Tire Rotation, Balancing, and Alignment at OREMOR Automotive Group
Accurate alignment, correct tire pressure, and regular rotation protect your vehicle’s handling and your tire investment. If your vehicle pulls to one side, vibrates at highway speeds, or shows uneven tread wear, schedule an inspection with an OREMOR service department. Our service centers are staffed with certified technicians who can work on models from any make. Learn more about OREMOR service.
While you’re planning a visit, it’s also a good time to check whether your cabin air filter can handle wildfire smoke.
